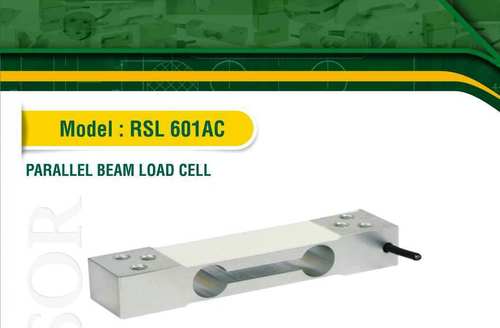

Parallel Beam Load Cell

Parallel Beam Load Cell
Parallel Beam Load Cell
Product Code : RSL 601AC
Product Description

To cope up the growing needs and requirements of the associated clients, we are offering a superior range of Parallel Beam Load Cell. These cells are made from top aluminium-alloy, which is sourced from some of the reliable vendors of the market. Our Parallel Beam Load Cell is most commonly used in‚ truck scales and tank & hopper weighing applications. Be it in domestic market or international, our offered load cells are cherished and acknowledged over the global platform.

Features:

  • Precise measurement
  • Sturdy design
  • Easy installation

Features

  • Single Point Off-center Load Measuring Capability
  • Economical and Low Profile Cell
  • Aluminium-alloy, Colorless anodized
  • Glue sealed

Applications

  • Bench, Counting & Postal Scales
  • Check Weighers (Recommended platform size : 500x500mm)

Parameters

Related Load (kg.) 100, 200,300,500

Precision

C2/C3

Composition Error

0.02

Rated Output (mv/v)

2 + 0.1

Non-Linearity (%FS)

0.03/0.017

Hysteresis (%FS)

0.03/0.02

Repeatability (%FS)

0.01

Creep (%FS/30min)

0.02

Zero Balance (%FS)

+ 1

Input Resistance ()

400 + 10

Output Resistance ()

350 + 2

Insulation Resistance(M)

>5000(50VDC)

Excitation Voltage (V)

5~15 (DC)

Compensated temp. Range (oC)

-10~+40

Use Temp. Range (oC)

-35~+65`C

Temp. Effect on Zero (%FS/10oC)

0.03/0.017

Temp. Effect on Zero (%FS/10oC)

0.03/0.017

Safe Overload (%FS)

120

Ultimate Overload (%FS)

150

Defend Grade

IP67

Cable

4mm, 2mtr
