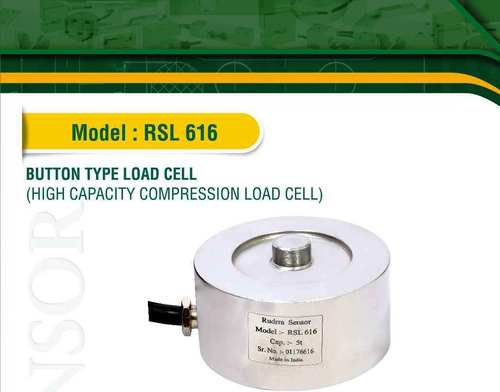

Button Type Load Cell
We are leading manufacturers and exporters of Spoke type Load Cell, demanded for their efficiency and high performance. These load cells are manufactured from quality raw material in compliance with quality standards laid by the industry. These cells are easy to install and require less technical expertise to operate. Moreover, these Spoke Type Load Cell are durable, have robust designs and are cost effective as well.
- Alloy steel & Stainless steel structure
- Nickel plated
- Suitable for multiform environments
- Easy to Install & Use
Applications
- Electronic Truck Scales
- Truck Scales, Hooper Scales
- Other Electronic Weighing Devices
Technical Specifications :
| Related Load (kg.) 1, 2, 3, 5, 10, 20, 25, 30 | |
| Precision | C2 |
| Composition Error | +0.03 |
| Rated Output (mv/v) | 2.0 + 1% |
| Non-Linearity (%FS) | 0.03/0.017 |
| Hysteresis (%FS) | 0.03/0.02 |
| Repeatability (%FS) | 0.01 |
| Creep (%FS/30min) | 0.02 |
| Zero Balance (%FS) | + 1 |
| Input Resistance () | 750 + 10 |
| Output Resistance () | 700 + 2 |
| Insulation Resistance(M) | >20000(50VDC) |
| Excitation Voltage (V) | 9~12 (DC) |
| Compensated temp. Range (oC) | -10~+40 |
| Use Temp. Range (oC) | -35~+65`c |
| Temp. Effect on Zero (%FS/10oC) | 0.03/0.017 |
| Temp. Effect on Zero (%FS/10oC) | 0.03/0.017 |
| Safe Overload (%FS) | 120 |
| Ultimate Overload (%FS) | 150 |
| Defend Grade | IP67 |
| Cable | 6mm, 5mtr |
